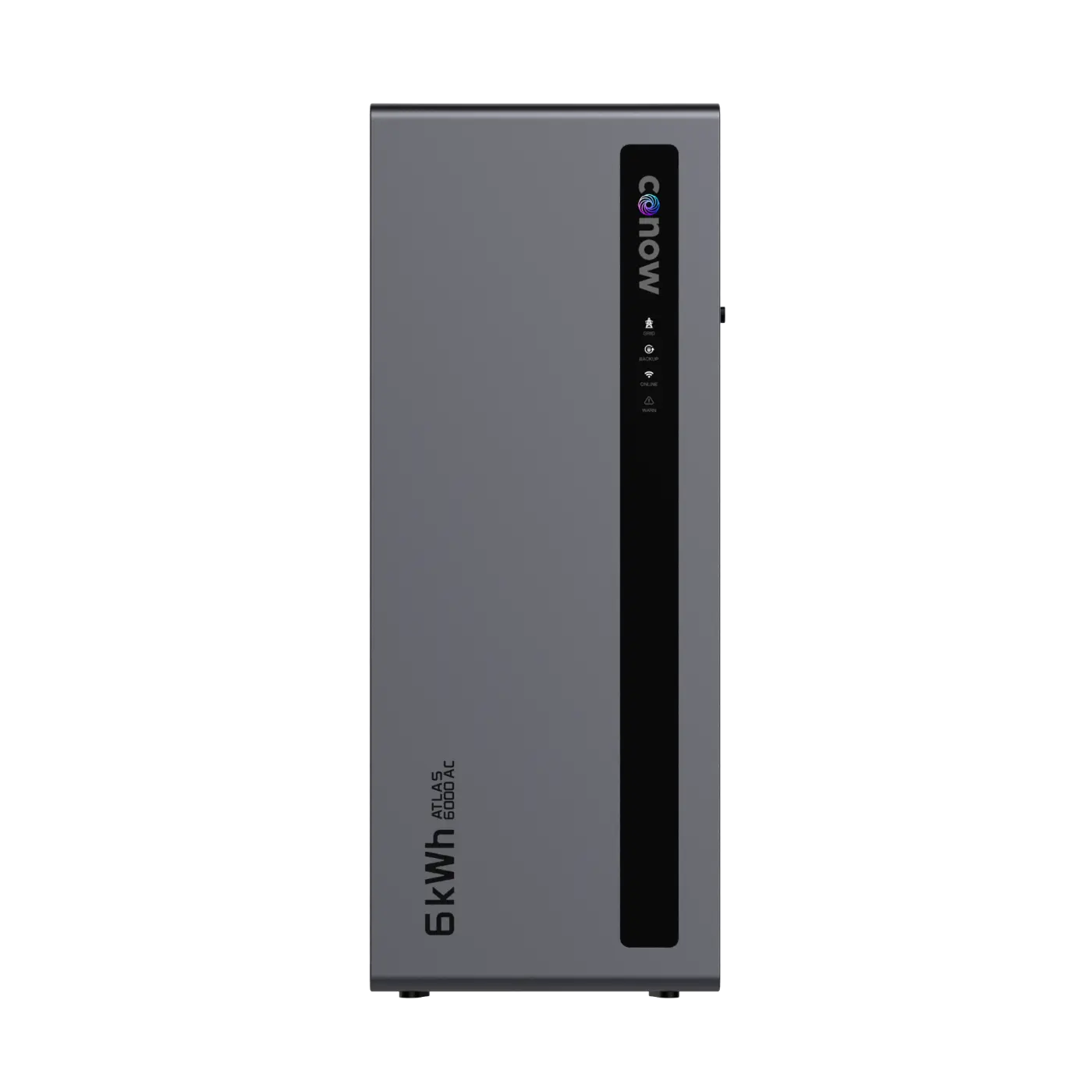

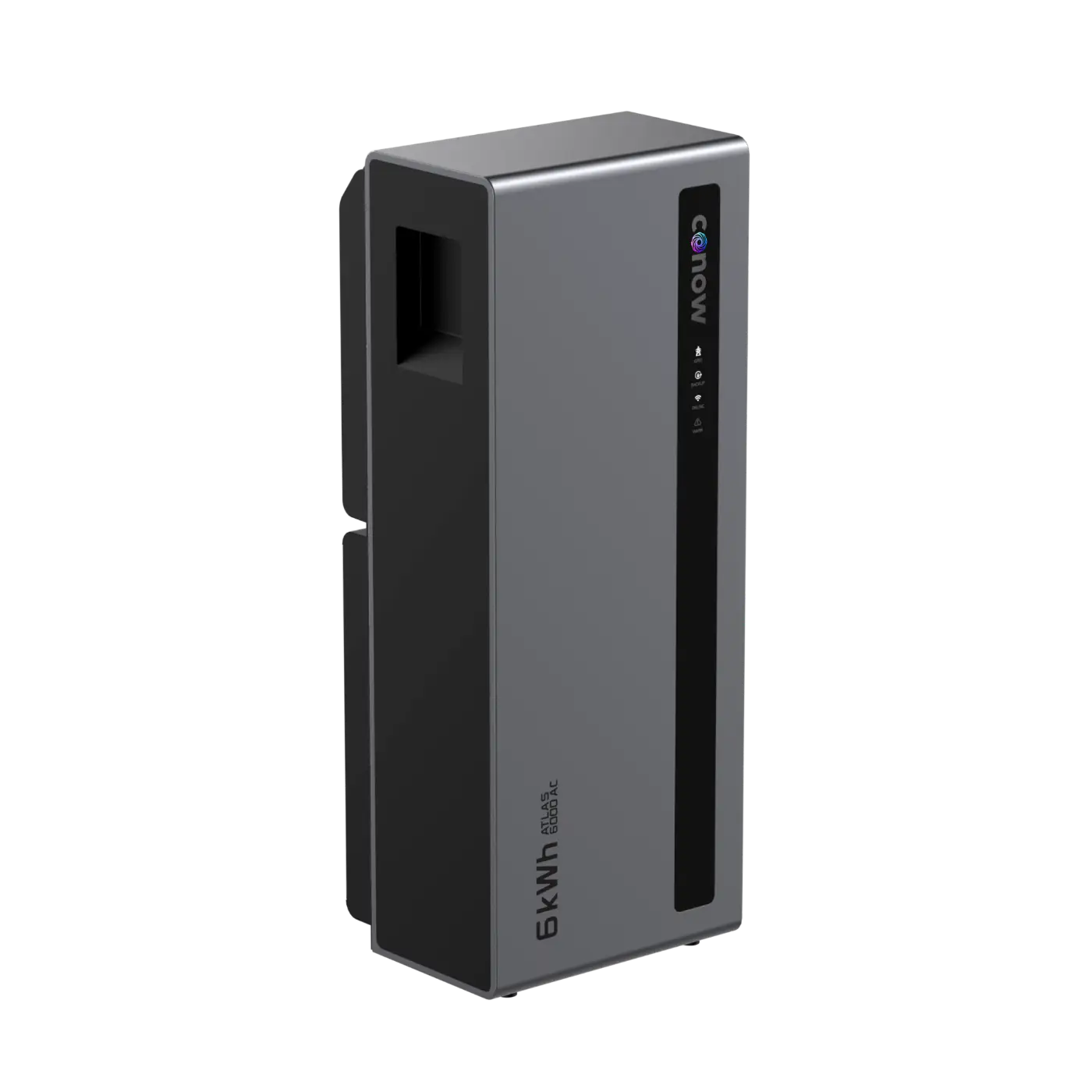

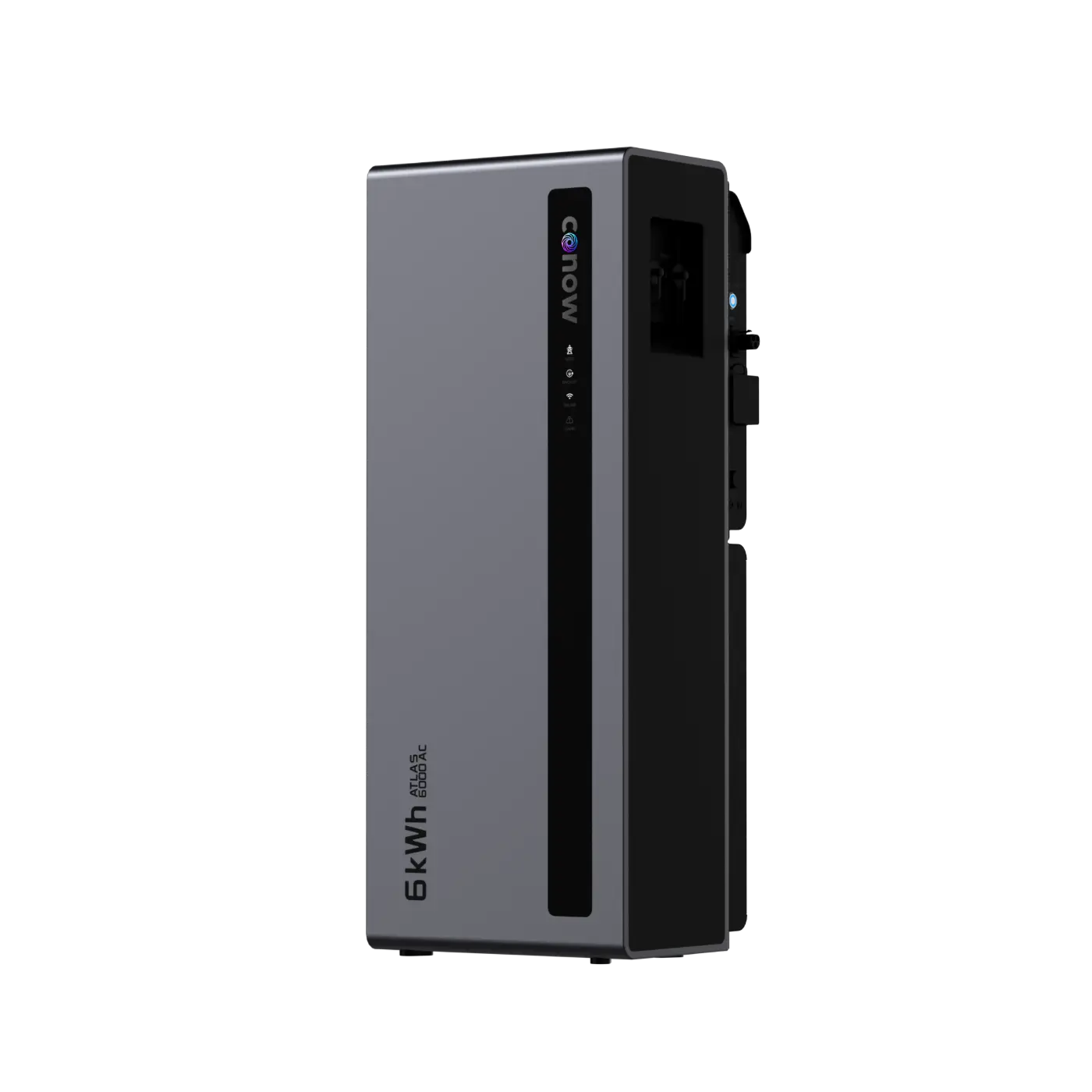

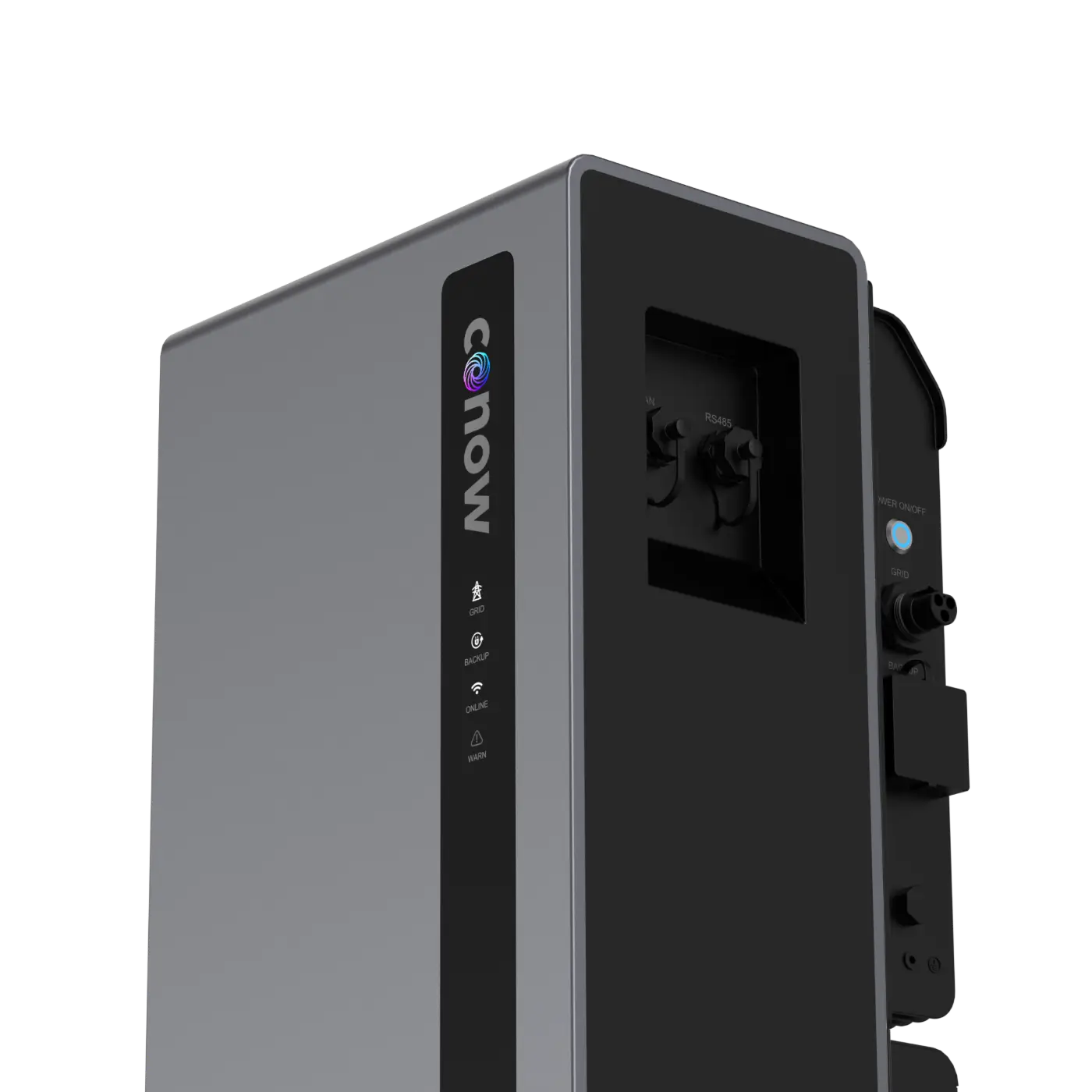

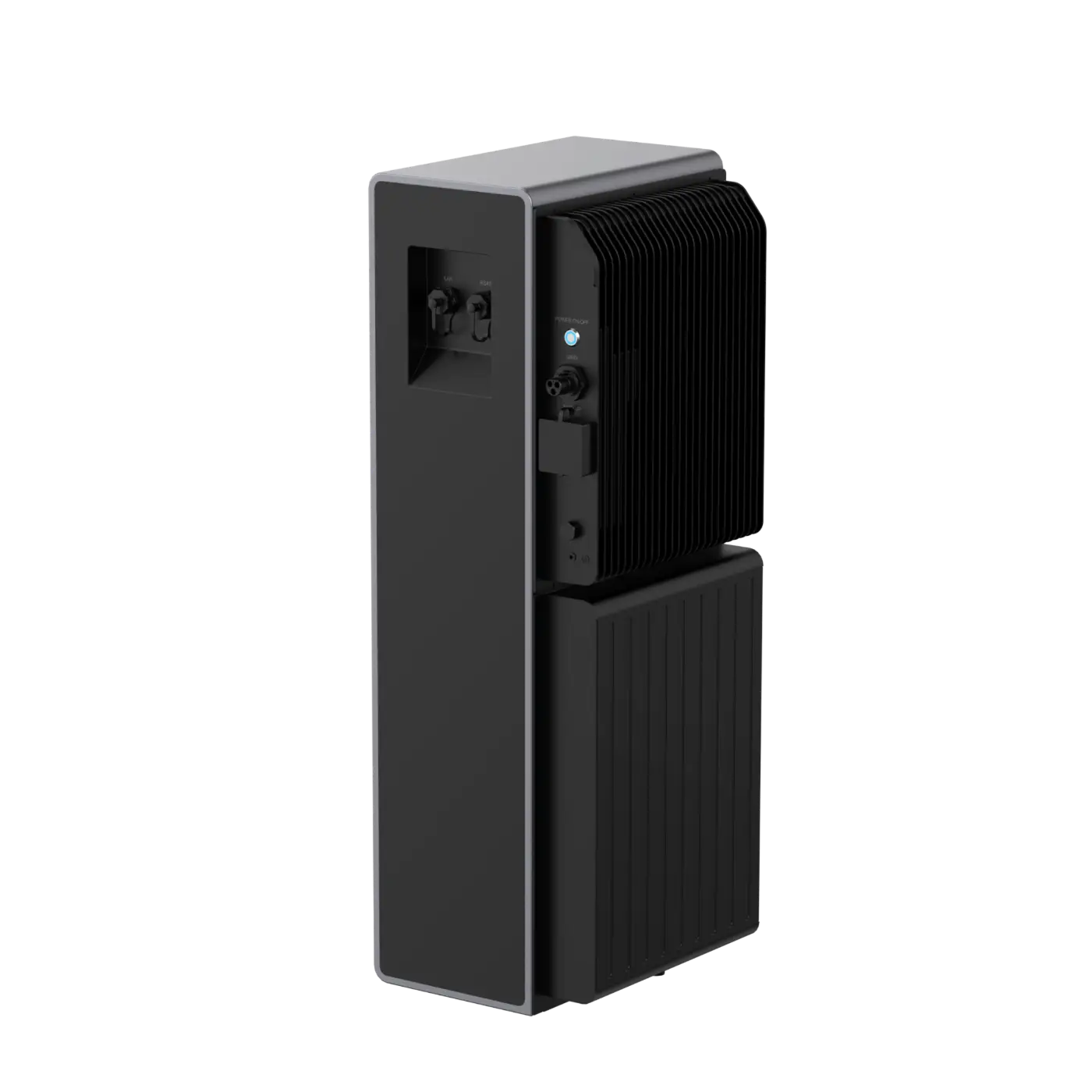

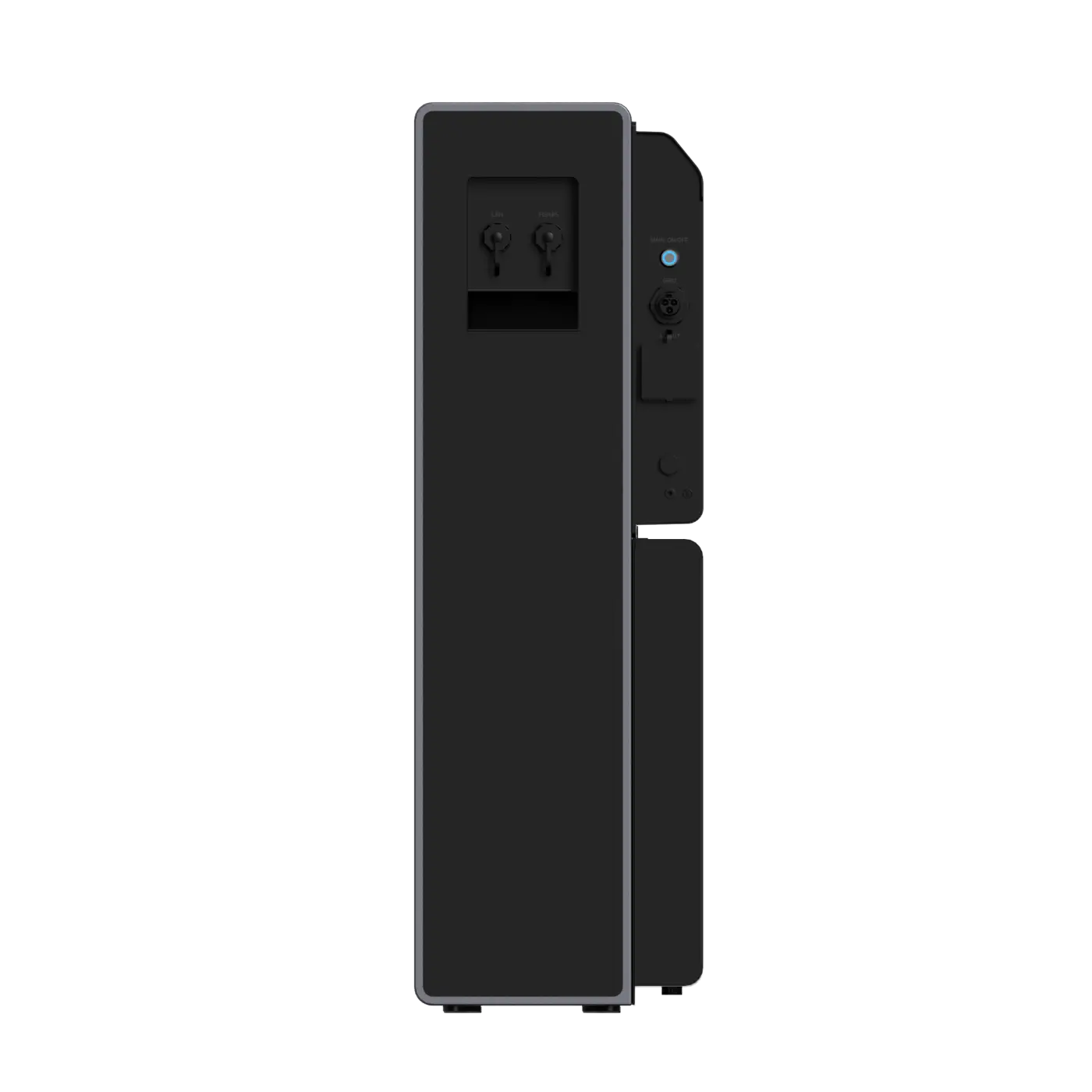

The Conow Atlas 6000 AC is an AC-coupled home battery storage system with a 6028Wh LiFePO4 battery and 3000W bi-directional inverter. Designed for existing solar systems, it provides energy storage, AI-powered energy management, and seamless backup with 10ms UPS backup.
| Technical Specification | Details |
|---|---|
| Product Name | Conow Atlas 6000 AC |
| Product Type | Integrated AC-coupled energy storage system |
| Capacity | 6028Wh |
| Rated Input Power | 3000W |
| On-Grid AC Output | 799W / 800W / 3000W |
| Off-Grid Backup Output | 3000W |
| Battery Type | LiFePO4 |
| Cycle Life | 10,000 cycles (25°C, 70% EOL) |
| Ingress Protection | IP65 |
| Output Voltage / Frequency | 230VAC / 50Hz |
| Operating Temperature | -20°C to +55°C |
| Heating | Contains heating film |
| Dimensions (W × H × D) | 805 × 315 × 256 mm |
| Net Weight | 55.9 kg |
| Gross Weight | 59.2 kg |
| Warranty | 10 years |
| AC Coupling | Yes |
| PV Compatibility | 100% PV compatible |
| Backup | 10ms seamless UPS backup |
| Peak Backup Output | 4500W |
| Expansion Technology | AirMesh™ |
| Maximum Units for Wireless Expansion | Up to 10 Atlas units |
| Maximum Expanded Storage | Up to 60kWh |
| Three-Phase Configuration | Up to 9kW using three Atlas units |
| Whole-Home Backup Configuration | 9kW / 18kWh |
| Communication | Wi-Fi, Bluetooth, Dual LAN |
| Wi-Fi Requirement | 2.4GHz |
| Apps | CONOW ECO/App; Tuya/SmartLife App |
| Smart Energy Modes | Self-use mode; Manual mode; AI intelligent control |
| Dynamic Tariff Support | 1,000+ dynamic tariffs |
| AI Saving | Up to 76% in energy savings |
| Smart Appliance Control | Over 6,000 appliances |
| VPP | VPP-ready architecture |
| API / Protocol | Open API; Modbus TCP |
| Smart Home Ecosystems | Tuya, Home Assistant, Shelly, EverHome, homewizard |
| Third-Party Inverter Integration | SMA, Fronius, FoxESS, and others via API |
| Monitoring Options | SDM01 CT Meter; Utility Meter Reader; third-party solar inverter API |
| Zero Export | Supported through compatible monitoring/integration options |
